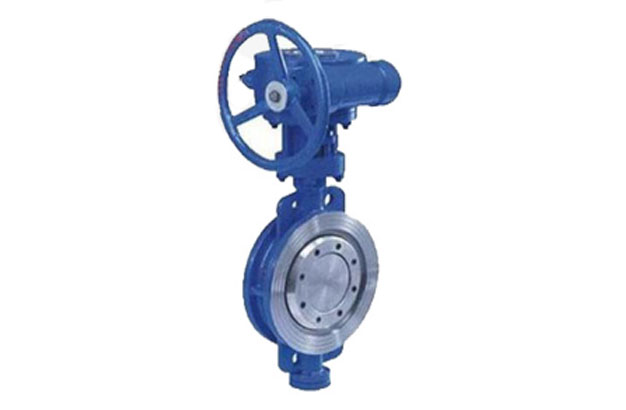

Three Eccentric Wafer Butterfly Valve
- Size:
- DN50-DN2000
- Pressure:
- 10Bar,16Bar,25Bar
- Body Materials:
- Cast steel,Stainless Steel
- Disc Materials:
- Cast steel,Stainless Steel
- Seat Materials:
- Cast steel,Stainless Steel
- Applicable Medium:
- Water supply and drainage system in tap water,sewage,Building,chemicals lndustries
- Send us Email
Product Introduction
Three Eccentric Wafer Butterfly Valve is used for water supply and drainage system in tap water ,sewage, Building, chemicals Industries ,usually used as an open-close equipment
| No. | Parts | Materials |
| 1 | Body | Cast steel,Stainless Steel |
| 2 | Disc | Cast steel,Stainless Steel |
| 3 | Stem | Stainless Steel |
| 4 |
sealing ring
|
Stainless Steel,PTFE |
| 5 | Temperature: | -208C~200°C |
| 6 | Applicable medium | Water supply and drainage system in tap water,sewage,Building,chemicals lndustries |
Product Features
Triple eccentric butterfly valve adopts triple eccentric structure design, and the valve plate has no friction with the seat in the full travel range of opening and closing, eliminating leakage caused by valve seat wear caused by opening and closing of rotary control valve.The valve seat adopts multi-layer structure and USES the combination of metal and non-metal materials to form the sealing surface.It performs well in both high and low temperature conditions.The series butterfly valves have long service life;Excellent sealing performance, suitable for almost all gas and liquid regulation and cut-off applications in industrial process control.
1.Double /Three eccentric structure,strictly sealing ,long durable and lifetime
2.Novel design, reasonable, unique structure, light weight, quick opening and closing.
3.High pressure resistance, corrosion resistance, wear resistance, long service time, etc.
Technical Parameters
| DN | L | H | HO | A | B | 0.6MPa | 1.0MPa | 1.6MPa | |||
| DO | n-Фd | DO | n-Фd | DO | n-Фd | ||||||
| 50 | 43 | 63 | 438 | 125 | 125 | 110 | 4-14 | 125 | 4-18 | 125 | 4-18 |
| 65 | 46 | 70 | 453 | 125 | 125 | 130 | 4-14 | 145 | 4-18 | 145 | 4-18 |
| 80 | 46 | 83 | 478 | 125 | 125 | 150 | 4-18 | 160 | 8-18 | 160 | 8-18 |
| 100 | 52 | 105 | 519 | 125 | 125 | 170 | 4-18 | 180 | 8-18 | 180 | 8-18 |
| 125 | 56 | 115 | 713 | 325 | 245 | 200 | 8-18 | 210 | 8-18 | 210 | 8-18 |
| 150 | 56 | 137 | 749 | 325 | 245 | 225 | 8-18 | 240 | 8-22 | 240 | 8-22 |
| 200 | 60 | 164 | 843 | 325 | 245 | 280 | 8-18 | 295 | 8-22 | 295 | 8-22 |
| 250 | 68 | 206 | 947 | 363 | 313 | 335 | 12-18 | 350 | 12-22 | 355 | 12-26 |
| 300 | 78 | 230 | 1013 | 363 | 313 | 395 | 12-22 | 400 | 12-22 | 410 | 12-26 |
| 350 | 78 | 248 | 1046 | 363 | 313 | 445 | 12-22 | 460 | 16-22 | 470 | 16-26 |
| 400 | 102 | 289 | 1135 | 363 | 313 | 495 | 16-22 | 515 | 16-26 | 525 | 16-30 |
| 450 | 114 | 320 | 1328 | 465 | 439 | 550 | 16-22 | 565 | 20-26 | 585 | 20-30 |
| 500 | 127 | 343 | 1226 | 546 | 481 | 600 | 20-22 | 620 | 20-26 | 650 | 20-33 |
| 600 | 154 | 413 | 1394 | 546 | 556 | 705 | 20-26 | 725 | 20-30 | 770 | 20-36 |
| 700 | 165 | 478 | 1534 | 546 | 556 | 810 | 24-26 | 840 | 24-30 | 840 | 24-36 |
| 800 | 190 | 525 | 1159 | 546 | 556 | 920 | 24-30 | 950 | 24-33 | 950 | 24-39 |
| 900 | 203 | 585 | 1748 | 617 | 706 | 1020 | 24-30 | 1050 | 28-33 | 1050 | 38-39 |
| 1000 | 216 | 640 | 1805 | 632 | 706 | 1120 | 28-30 | 1160 | 28-36 | 1170 | 28-42 |
Technical Standard
Face-to-face: API 609 Table 1/ISO 5752 Series 20/BS 5155
Flange accommodation: ANSI B16.1 Class125/150
EN1092-2 PN6/10/16/25
Top Flange:ISO5211
Tightness Inspection: API 598/ISO 5208,/EN12226-2
